DELIVERED BUILD
DELIVERED BUILD
Juan Seguin
The second of two 80 ft triple-jet pilot vessels delivered to Houston Pilots — built from the same proven hull form as San Jacinto, refined for the Commercial Canal.
The BuildPilot Boats
Sistership precision — every system proven
Hull 1775
- Identical propulsion to San Jacinto — three MAN D 2862 LE 438 / Hamilton HTX 47
- Seakeeper 40 gyro-stabilizer
- Lorex Fusion cameras + FLIR for full-spectrum awareness
- Fuel capacity: 1,350 gal forward + 850 gal aft
- SeaDeck — Storm Gray over Red Teak
03 — BOAT PROFILE
Juan Seguin — Boat Profile
Fig. 03 — Side Elevation
- Size
- 80 ft LOA · 21 ft beam
- Top Speed
- 37.5 kn top · 32.5 kn cruise
- Vessel Type
- Pilot Vessel
- Hull Type
- Aluminum Inverted Deep "V"
- Classification
- Built to U.S.C.G. Standards and ABS Welding Standards
- Designer / Builder
- Breaux's Bay Craft
- Owner
- Houston Pilots
- Vessel Location
- Commercial Canal
- Year Built
- 2026
The Outcome
Houston Pilots' Commercial Canal station fully equipped
- Top Speed
- 37.5 kn
- Fleet Hull Count
- 2
- Propulsion
- 3 × Jet
What the build delivers
01
Performance & Capacity
Power & Performance
- Engines
- Three (3) MAN D 2862 LE 438 · 1,200 rpm each
- Gears
- Three (3) Twin Disk MGX-5204 SC
- Generators
- Two (2) Northern Lights M944T3FG 38 kW 3-Phase
- Engine Shafts
- DSL Cardan Shafts — 2 composite + 1 steel (Driveline Service of Portland)
Capacities
- Fuel Capacity
- Forward: 1,350 gal · Aft: 850 gal
- Fresh Water Capacity
- 100 gal
- Additional Capacities
- Three (3) DEF tanks · 145 gal each
02
Systems & Outfitting
Electronics & Navigation
- Furuno FAR-1518 Radar Scanner
- Two (2) Sailor 6248 VHF Radios
- Furuno FE-800 Echo Scanner
- Furuno GP170D DGPS
- Furuno LH5000 Loud Hailer
- Furuno SC-702 SAT Compass
- ACR GlobalFix V5 EPIRB
- Lorex Fusion Cameras
- FLIR Cameras
- Three (3) Delta19 Multifunction Displays
- TCL Television
- Two (2) Tote Vision LCD Monitors
Custom Features
- Seakeeper 40 gyro-stabilizer
- SeaLift rescue platform on transom
- Fixed CO2 engine-room fire suppression (Total Safety / Burner Fire Control)
- Two (2) four-ton Dometic variable-speed chillers + five air-handling units
- Delta-T blowers with temperature/speed control and automatic vent dampers
- Fuel polishing system (Gulf Coast Filters)
- Water-cooled exhaust (Soundown of Massachusetts)
- Custom SeaDeck — Storm Gray over Red Teak pattern
- Fritted laminated glass with integrated defrosters
- Hamilton Jet AVX Advanced Controls

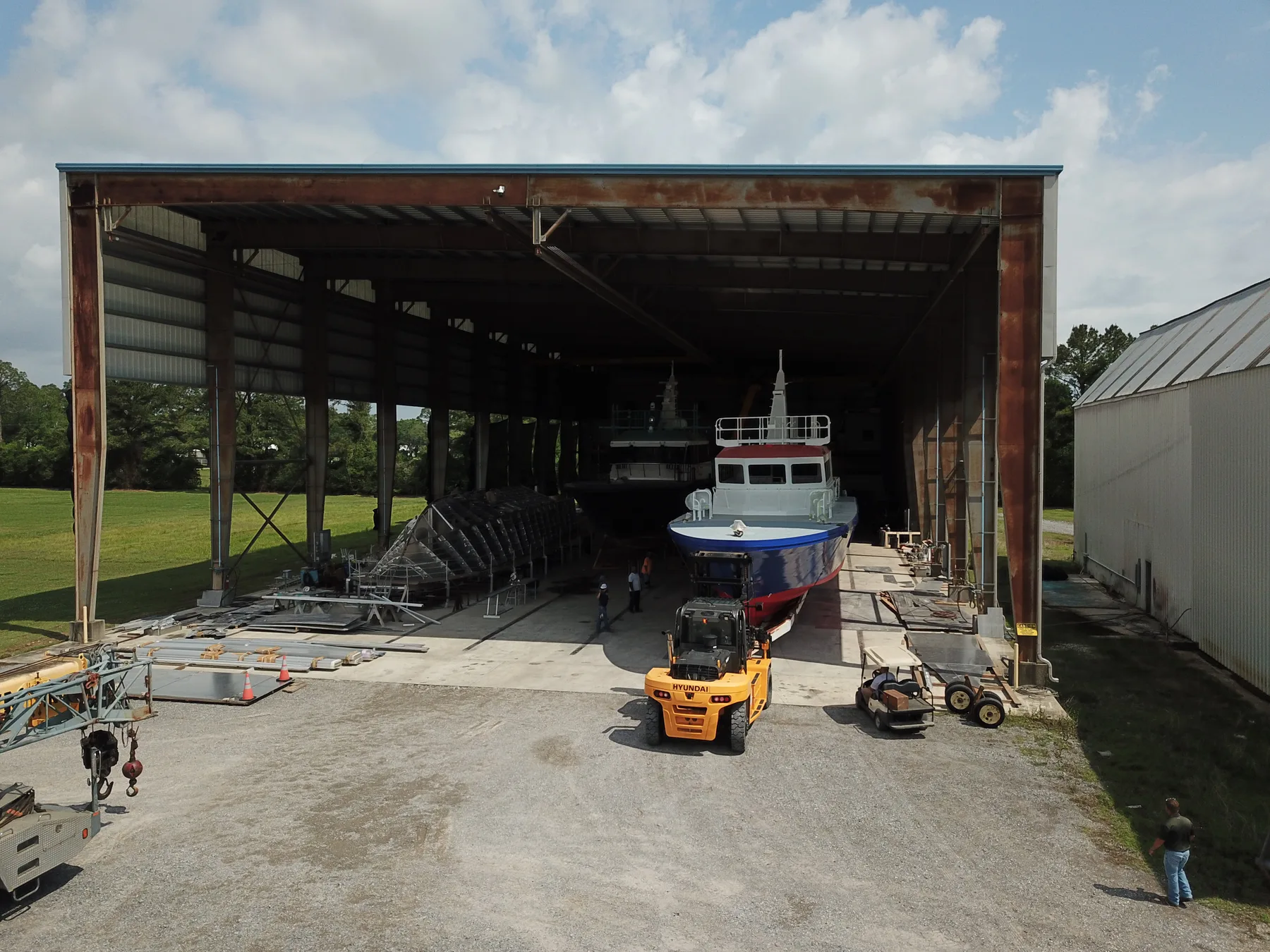

Gallery
On the water, and in the yard.
