Judith Ann
One of Breaux's Bay Craft's largest builds — a 202 ft ABS fully-classed DP2 fast crew and supply vessel with integrated FIFI-1 fire-fighting and accommodations for crew and 78 passengers.
The BuildCrew Boats
ABS A-1 DP2 · FIFI-1 · 78 passengers
Hull 1766
- Four (4) Caterpillar 3516C · 2,575 hp each · 10,300 HP total
- ABS Fully Classed A-1 · DP2 certified · USCG
- FIFI-1: two FFS pumps · 5,400 GPM each · PTO-driven
- 78-passenger high-back seating · sleeping for 12 crew
- 50,000 gal fuel · 50,000 gal rig water · 427 long-ton deck cargo
03 — BOAT PROFILE

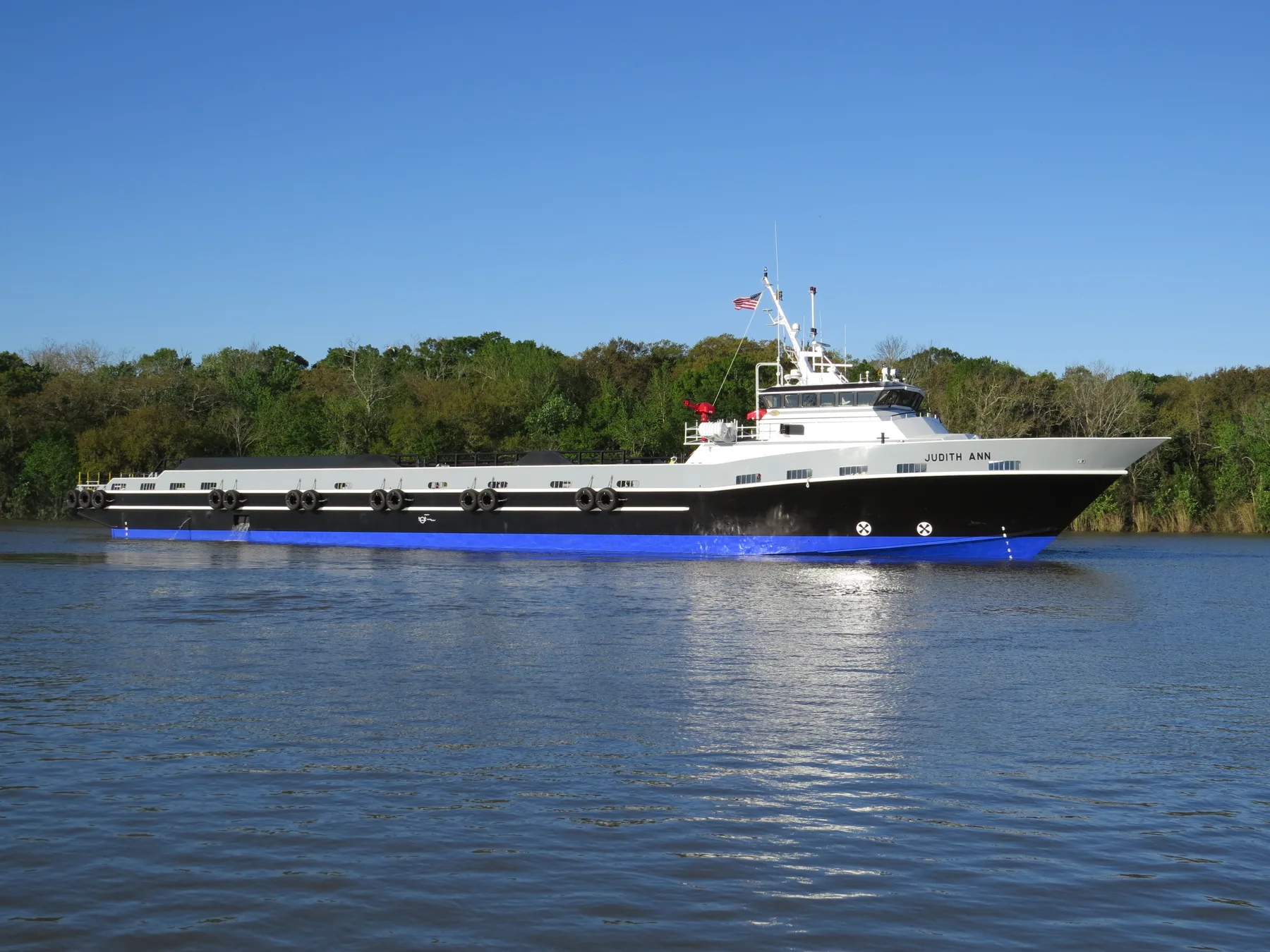

Judith Ann — Boat Profile
Fig. 03 — Side Elevation
- Size
- 202 ft LOA · 32 ft beam · 7 ft 6 in draft
- Top Speed
- 30 kn top
- Vessel Type
- Fast Crew / Supply Vessel
- Hull Type
- Aluminum
- Classification
- USCG · ABS Fully Classed A-1 · DP2 · FIFI-1
- Designer / Builder
- Breaux's Bay Craft, Inc.
- Owner
- Tobias
- Vessel Location
- Offshore / Gulf of Mexico
- Year Built
- 2019
The Outcome
ABS-classed DP2 capability delivered on time
- LOA
- 202 ft
- Passengers
- 78
- Propulsion
- 10,300 HP
What the build delivers
01
Performance & Capacity
Power & Performance

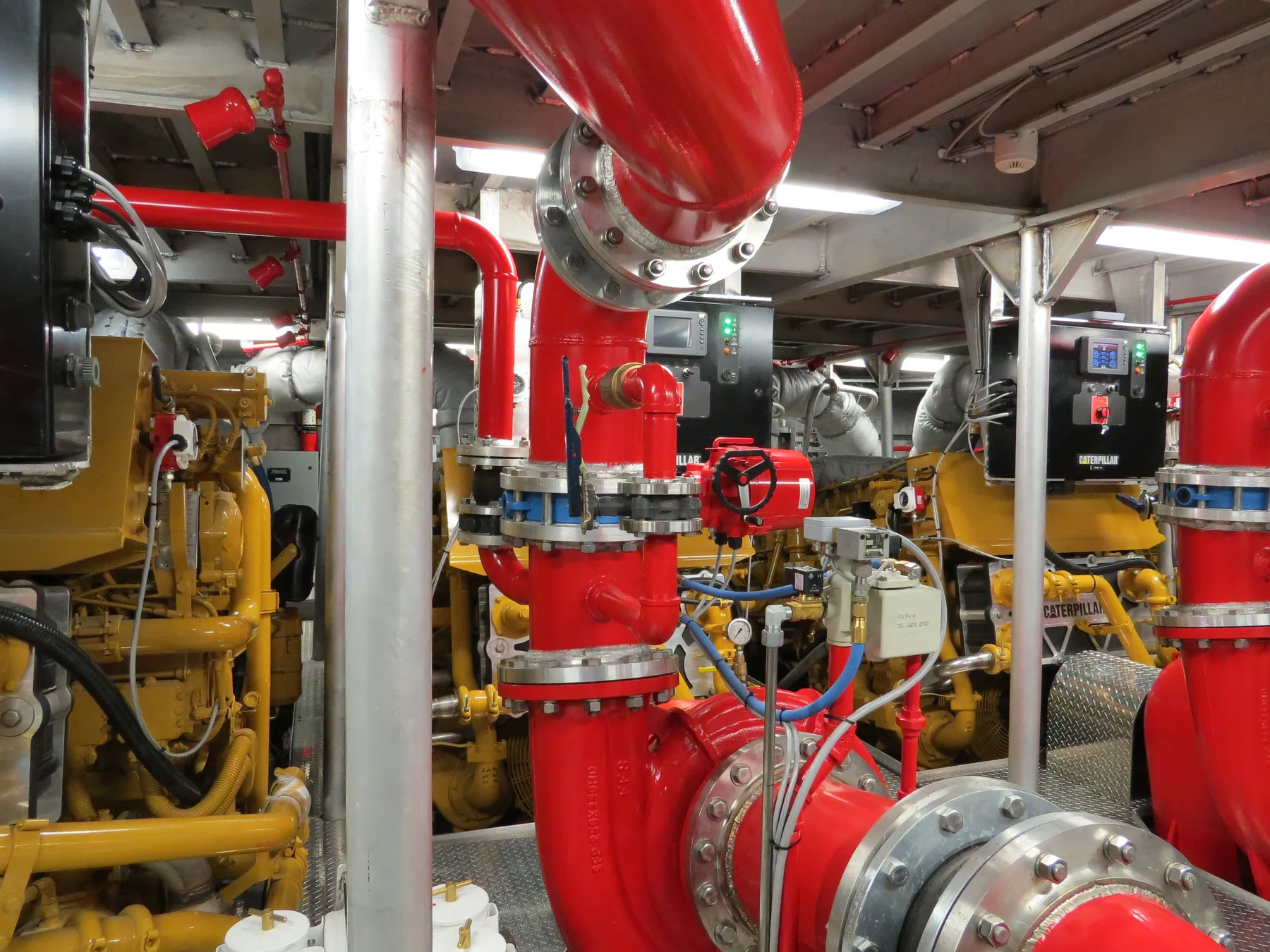

- Engines
- Four (4) Caterpillar 3516C · 2,575 hp @ 1,600 rpm each
- Gears
- Twin Disc MGX61000 SC · 2.54:1 ratio
- Generators
- Two (2) John Deere 4045AFM85 120/208 V 3-Phase 99 kW (keel-cooled) · Two (2) John Deere 6090AFM75 265 hp for bow thrusters
- Engine Shafts
- Four (4) Michigan 54-in dia. × 67.5-in pitch propellers
Capacities
- Fuel Capacity
- 50,000 gal
- Fresh Water Capacity
- 1,400 gal
- Additional Capacities
- Rig water: 50,000 gal · Ballast: 10,000 gal · Deck cargo: 427 long tons (130 ft × 26 ft deck)
02
Systems & Outfitting
Electronics & Navigation
- Two (2) Furuno Radars (Port & Starboard)
- Three (3) ICOM VHF Radios (1 aft, 2 forward)
- Furuno GPS
- Furuno Navtex Receiver
- Digital Depth Indicator
- Loud Hailer
- Bridge Watch Alarm Panel
- Video Monitor / Camera Selector
- Radiotelephone SSB
- Encoder / Decoder
- EPIRB
- Compass
Custom Features
- FIFI-1 System: Two (2) FFS FI FI Pumps SFP 250×350XPC w/ PTO · 5,400 GPM each
- DP2 System · ABS Certified · C-Mar certified
- Two (2) 30-inch Thrustmaster of Texas tunnel thrusters
- ABS Fully Classed A-1 DP2 FIFI-1
Gallery
On the water, and in the yard.
