Rising Water — Other Specialty Vessels
DELIVERED BUILD

Rising Water

A purpose-built 36 ft aluminum V-bottom deck barge for utility, access, and payload work where a conventional deep-V won't do.
5.0Trusted by professional operators across the Gulf
ContactCall Us
Hull
1760
Class
Other Specialty Vessels
Client
Private Owner
Delivered
2020
LOA
36 ft
The Build

Aluminum V-barge — shallow draft, serious payload

Rising Water 36-foot aluminum V-barge — aerial drone view
Hull 1760
  • 36 ft LOA · 11 ft 9 in beam · 3 ft 9 in depth
  • Twin Suzuki DT250 TX2 · 500 HP total · hydraulic steering
  • Garmin 1242 XSV 12" chartplotter / fish finder + GMR Plus 4 kW radar
  • 180-gal fuel · auto bilge pump
  • Fir deck boards on forward deck · aluminum port-side storage box
03 — BOAT PROFILE

Rising Water — Boat Profile

Rising Water side elevation blueprint
Fig. 03 — Side Elevation
Hull 176036 ft LOA
Size
36 ft LOA · 11 ft 9 in beam · 3 ft 9 in depth
Top Speed
Planing work speed

Vessel Type
Aluminum V-Bottom Deck Barge
Hull Type
Aluminum
Classification
Custom aluminum commercial build
Designer / Builder
Breaux's Bay Craft, Inc.
Owner
Private Owner
Vessel Location
Inland / Coastal
Year Built
2020

The Outcome

Shallow-draft payload capacity in an aluminum package

LOA
36 ft
Horsepower
500 HP
Fuel
180 gal
What the build delivers
01

Performance & Capacity

Power & Performance

Engines
Two (2) 2020 Suzuki DT250 TX2 Outboards · 500 HP total

Capacities

Fuel Capacity
180 gal
02

Systems & Outfitting

Electronics & Navigation

  • Garmin GPS/MAP 1242 XSV 12" Display (GPS / chartplotter / fishfinder)
  • Garmin GMR Plus Radar 18" 4 kW Dome
  • ICOM M330 VHF Radio with antenna

Custom Features

  • Fir deck boards on forward deck
  • Aluminum storage box — port side
  • 51S Auto Bilge Pump 12V 1,500 GPH
  • Hydraulic steering system
Gallery

On the water, and in the yard.

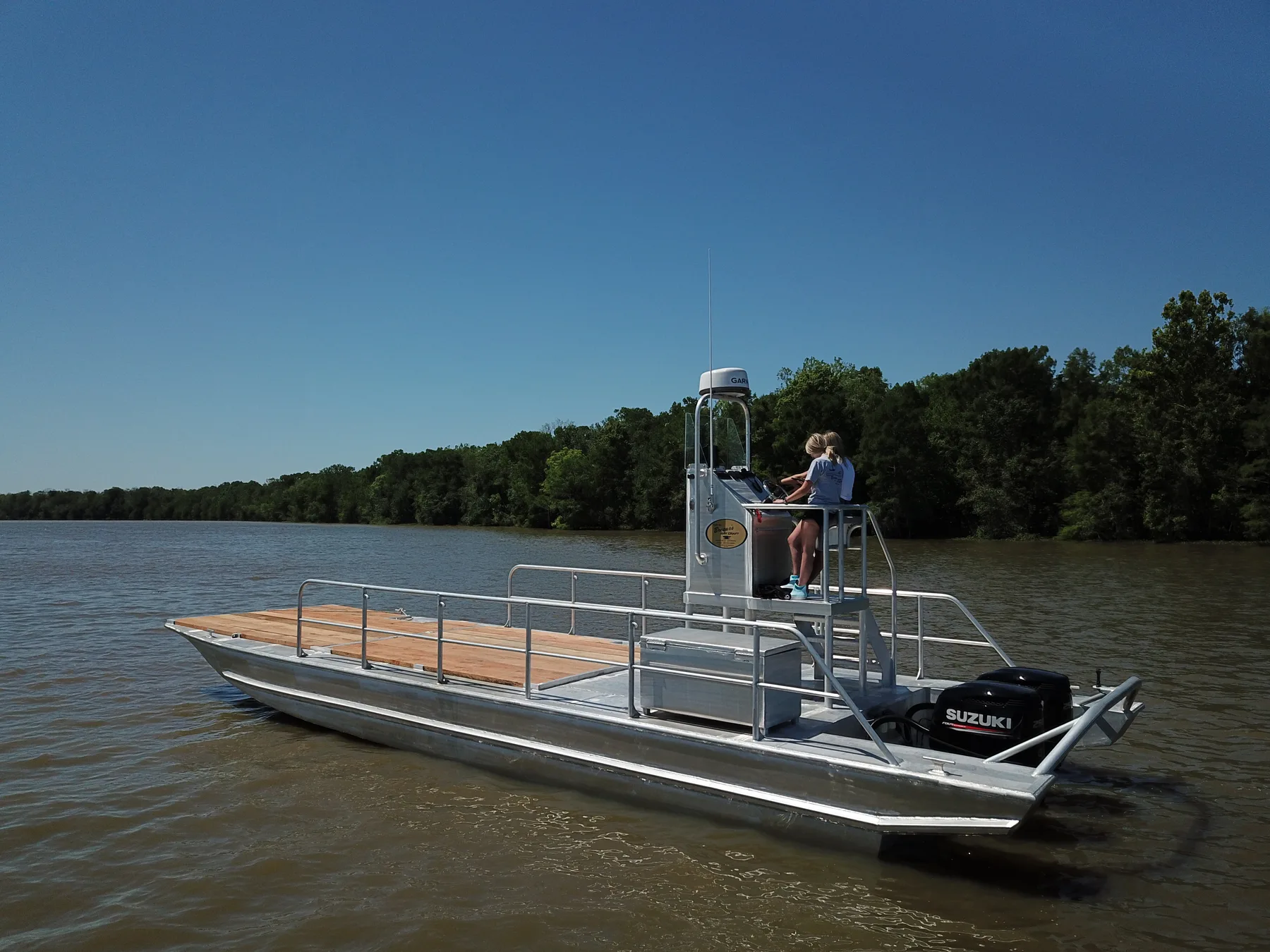

Rising Water 36 ft V-barge — aerial drone, underway
Aerial / Drone — Aerial underway
Rising Water from above — port side
Aerial / Drone — Port side, aerial

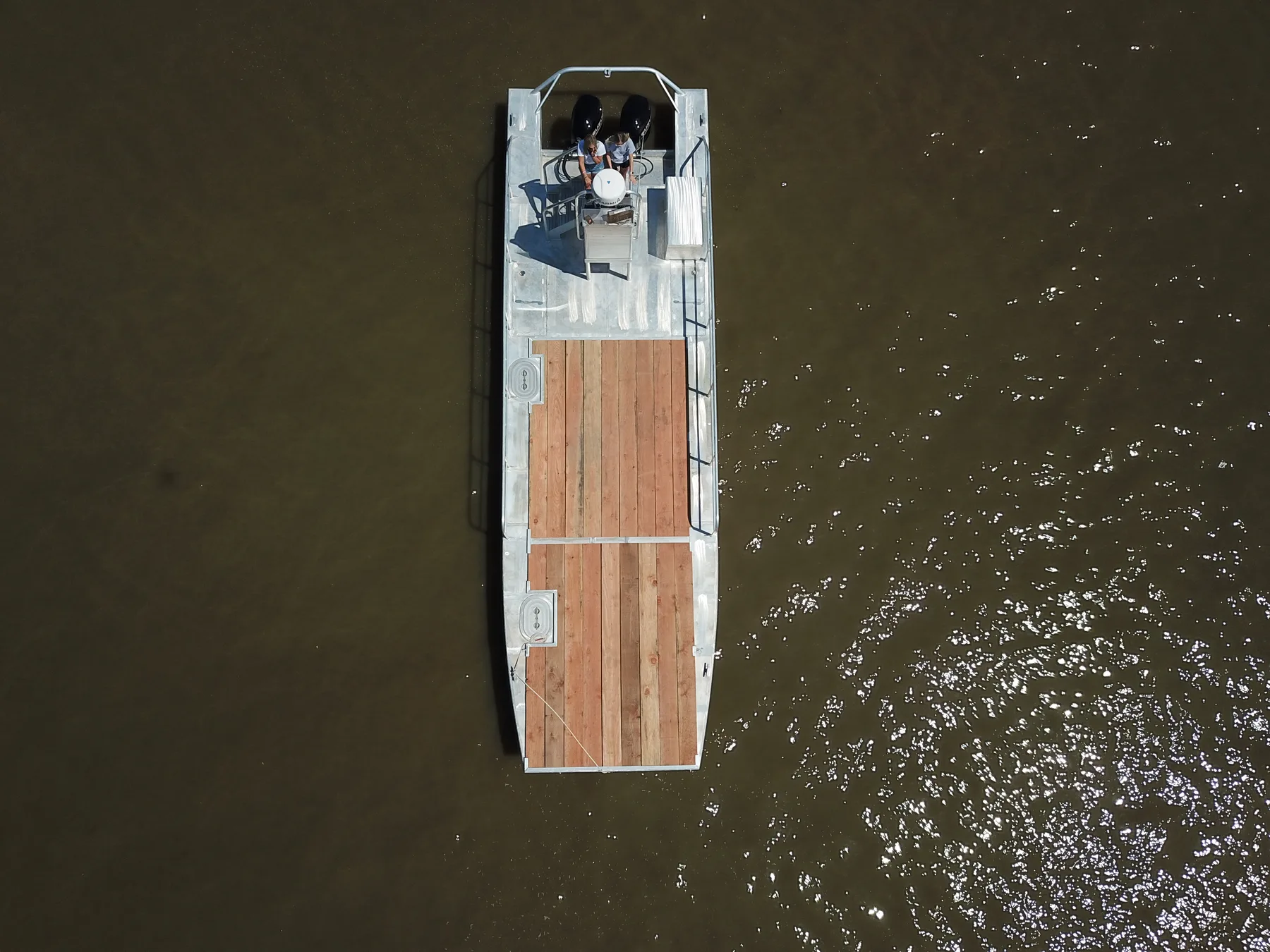

Rising Water aerial — aft quarter
Aerial / Drone — Aerial aft quarter

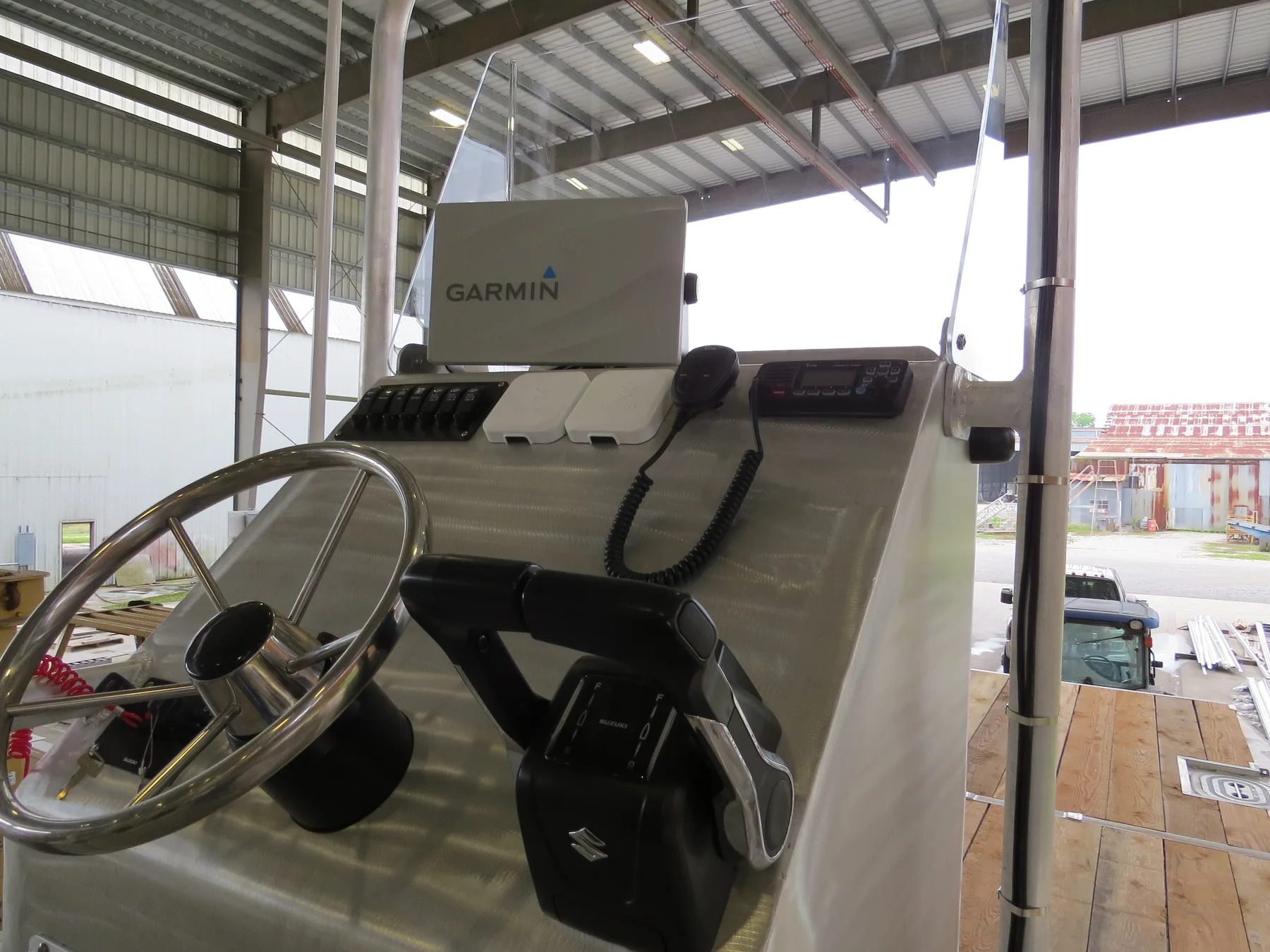

Rising Water 36 ft V-barge — dockside profile
Dockside — Dockside profile

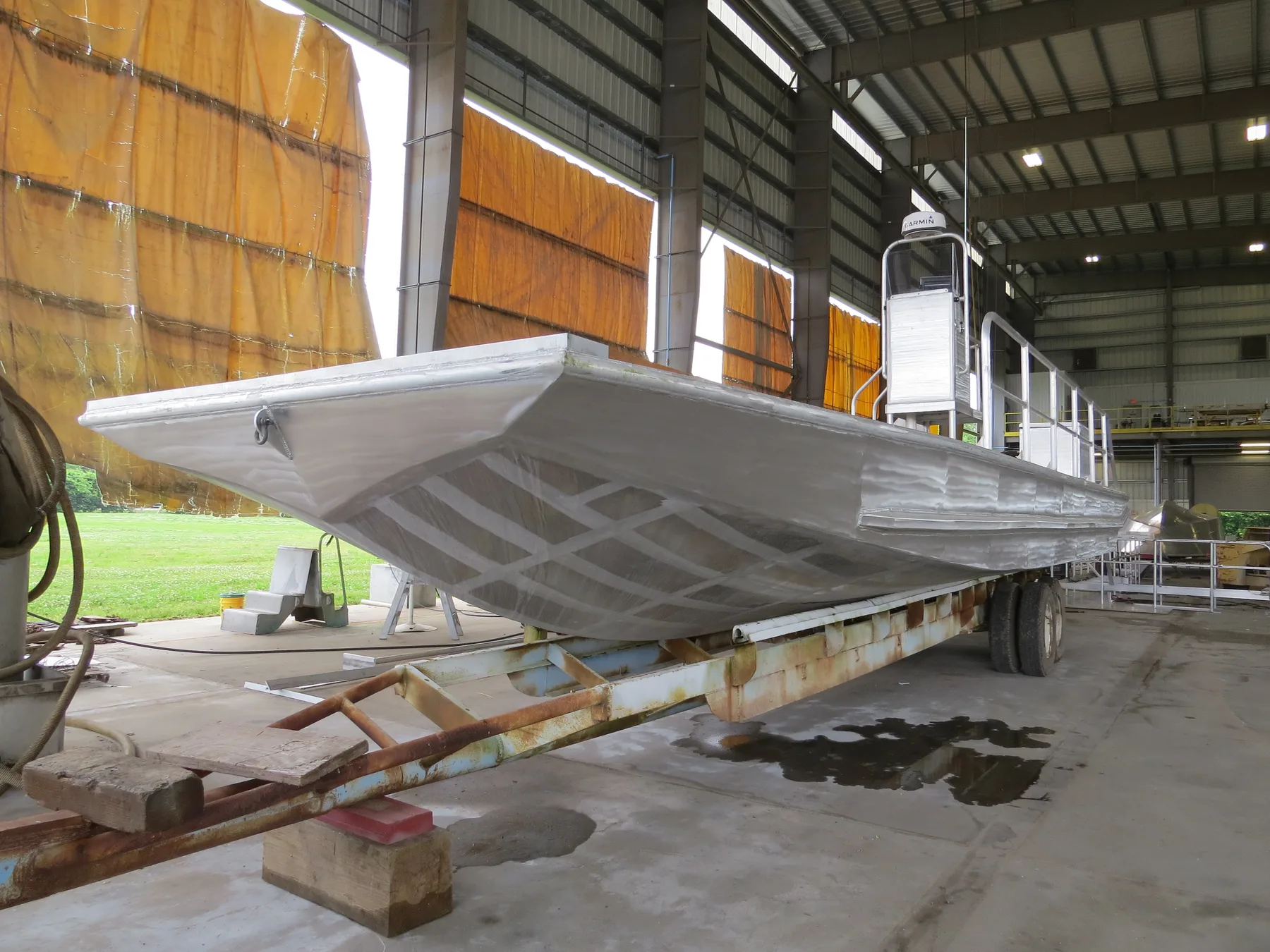

Rising Water dockside — bow view
Dockside — Bow view
1 / 5
